Geometry review / 8 min

Review backing, openings and edges

Separate panel coverage from the physical face that supports the installation.

Example project: Cedar Pavilion. Fictional drawings, actual product interface. Tutorial steps describe the intended workflow; complete project acceptance remains under review.

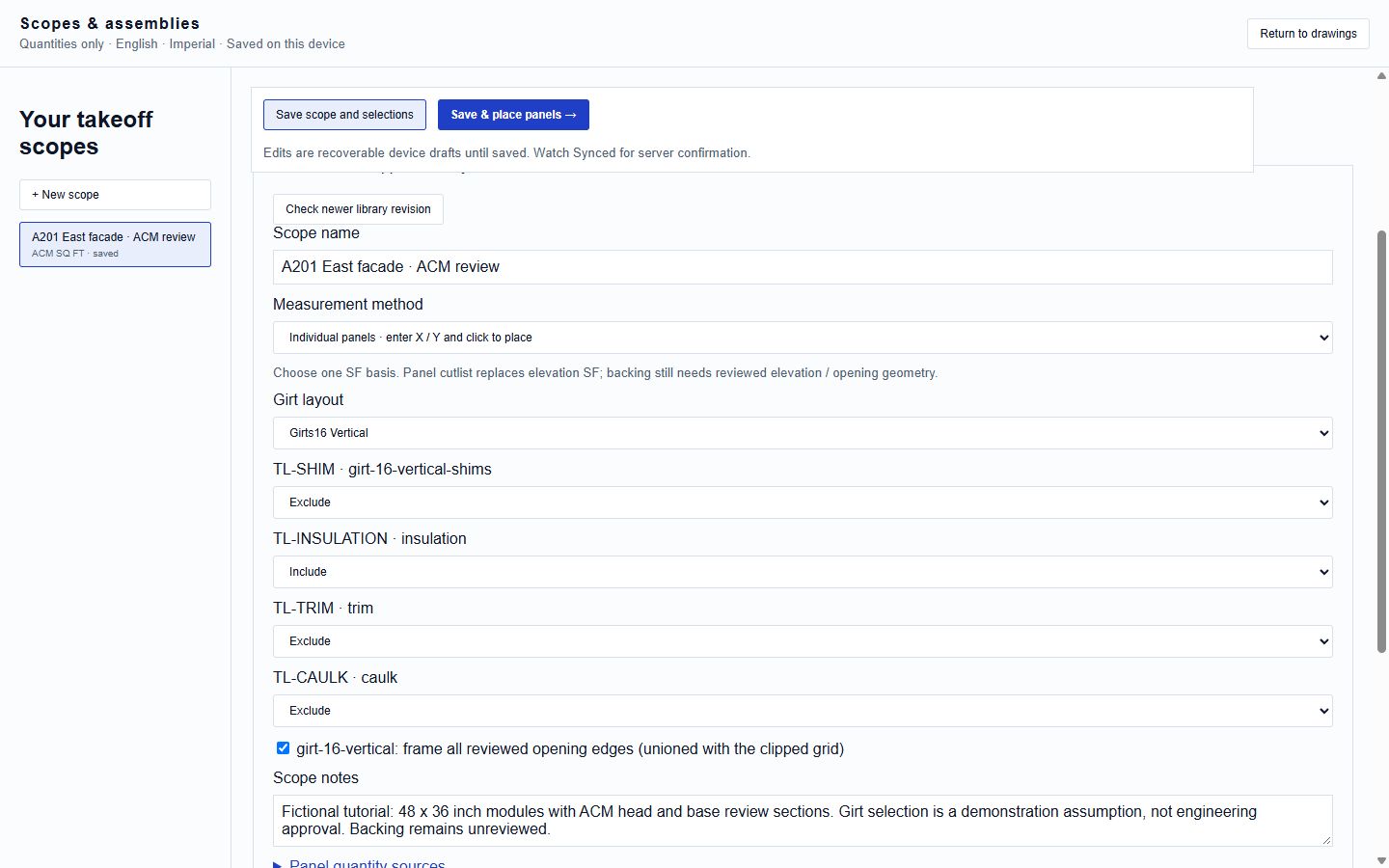

Review backing, openings and edges in the actual app with fictional drawings
Product workspace · Cedar Pavilion example Actual app · fictional project

  1. Measure the installed face

    Use Save & measure area for the selected scope. Trace the rectangular or polygonal elevation boundary. Confirm its scale and source.

  2. Review openings

    Identify windows and other openings. Review face geometry and the applicable deductions before saving the face.

  3. Choose physical runs and edges

    Provide the geometry and engineering inputs required for girts and fixings. Specify full perimeter or selected trim/sealant edges explicitly. SF multiplied by a factor is not an exact geometric girt calculation.

  4. Save the reviewed face

    Save the face and read any unresolved component messages. Do not substitute the sum of panel boundaries for the elevation boundary or approve assumed engineering inputs.

Before you continue

Backing and edge quantities have explicit geometry and reviewed inputs, with missing information still visible.
