ACM and Profile material inputs
Use the product and scope definition behind the quantity.

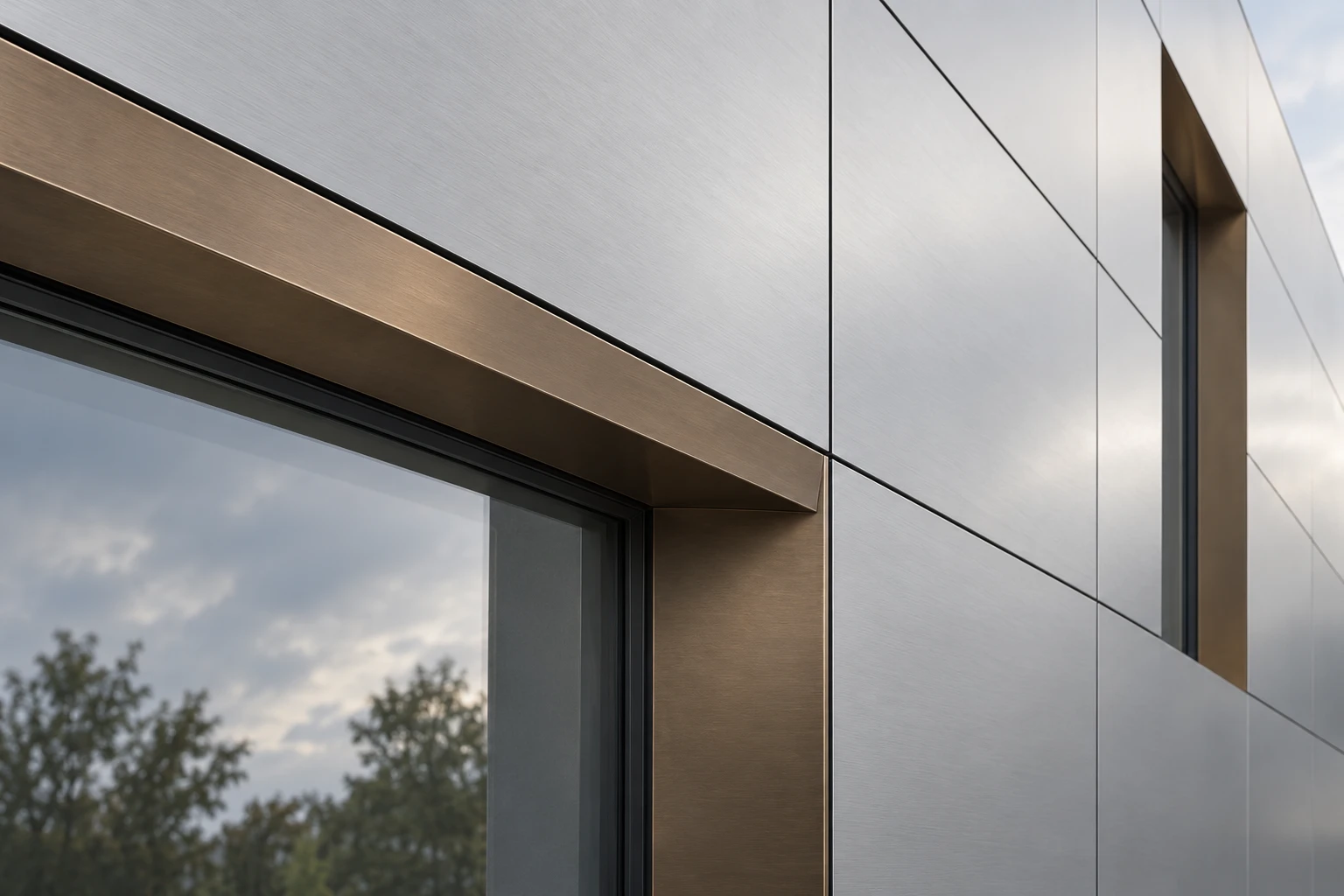

ACM
Normal ACM is supplier-priced by SF. Finished panel schedules do not automatically add fabricated-panel extrusion or stiffener assumptions. Optional fabricated-panel calculations require their own per-piece inputs.
Profile and rainscreen cladding
Use the specified product and its effective coverage. Profile width is product-specific. Related cladding systems can use configured assemblies; availability depends on the saved library.
Mixed materials
When a scope contains more than one panel material, assign the component input explicitly. Insulation and panel finish quantities are different material roles even when both are measured in SF.
Use the drawing specifications and reviewed scope inputs. Quantities and suggestions do not constitute engineering approval.
